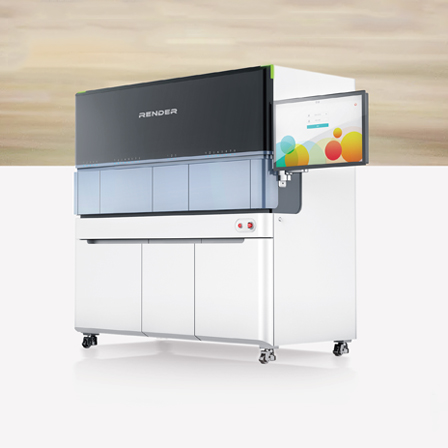

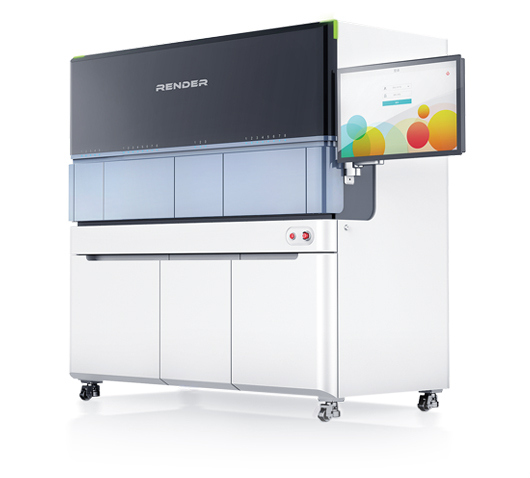

Fully Automated Thromboelastography SystemIHTEG12

The Thromboelastography System is a detection device which can perform dynamic analysis of clotting factor activation, platelet aggregation, fibrinolysis, etc.

Back to list

Overview Specifications DocumentTraining


  • High-throughput Automated Hemostasis Analyzer System

    IHTEG12

    Innovative walkaway automation
    No manual work from sampling to report
    High-throughput solution for big hospitals
    The Thromboelastography System  is a detection device which can perform dynamic analysis of clotting factor activation, platelet aggregation, fibrinolysis, etc. By physically transforming the elastic strength of the blood clot into a graphical representation, the patient's coagulation-fibrinolysis can be completely presented, and the blood coagulation condition can be visually judged and analyzed. Coagulation assessment is often used to predict clinical conditions, such as postoperative bleeding, thrombosis during extracardiac surgery or postoperative surgery, organ transplantation, trauma, and thrombosis during or after cardiac surgery.


Characteristics:

Innovative walkaway automation

No manual work from sampling to report

High-throughput solution for big hospitals

Features:

Automated and Non-Stop procedure from scan of barcodes, sampling, testing to final report.

Simply place the sample tubes and test cartridges on respective area.

One Simple Click to start the whole process, minimize labor and time costs.

12 test channels for 12 simultaneous and independent testing.

High-throughput: 24 tests/hour.

96 positions for cartridge, 96 tests can be obtained after one single loading.

All reagents are prepared and sealed in one cartridge according to test item.

Eliminate manual work and extra time in hospital for reagents preparation.

Best homogeneity of reagents guaranteed by automation and strict QC, reduce manual errors.

Standard, rapid TEG,TEG with heparinase, functional fibrinogen, platelet mapping

AA /ADP, AA+ADP tests etc. and can be extendable to meet a wide range of requirments.

Specifications:

Dimension:1550x750x1650CM

Voltage210-240VAC, 50Hz

Operation temperature:15-30

Operation humidity:20-80%

R, K, Angle, MA:CV<10%


We offer product training courses and guides to give you the skills and knowledge you need to operate your clinical laboratory instruments.
